Waveshare ESP32-C6 GEEK Development Board, With 1.14inch 65K Color LCD Display, 240x135 Resolution, Supports 2.4GHz Wi-Fi 6 And BLE 5, USB-A Male Port, With White Plastic Case

Marka: Waveshare
Technologia pamięci RAM: SRAM
Częstotliwość taktowania pamięci: 160 MHz
Nazwa modelu: ESP32-C6 GEEK
Typ głównego złącza zasilania: USB-A
Interfejs karty graficznej: Zintegrowane
Producent: Waveshare
Liczba jednostek: 1 szt.

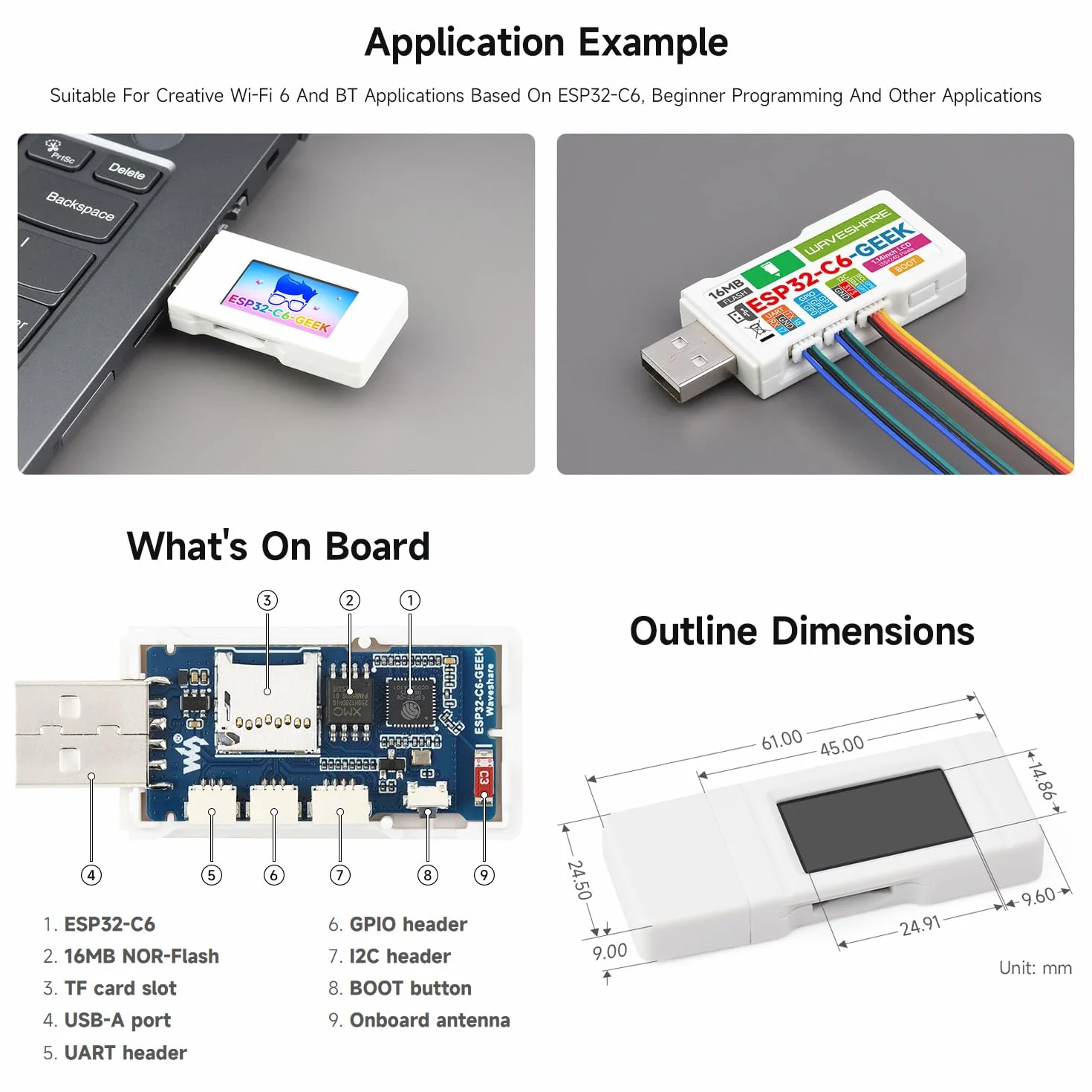

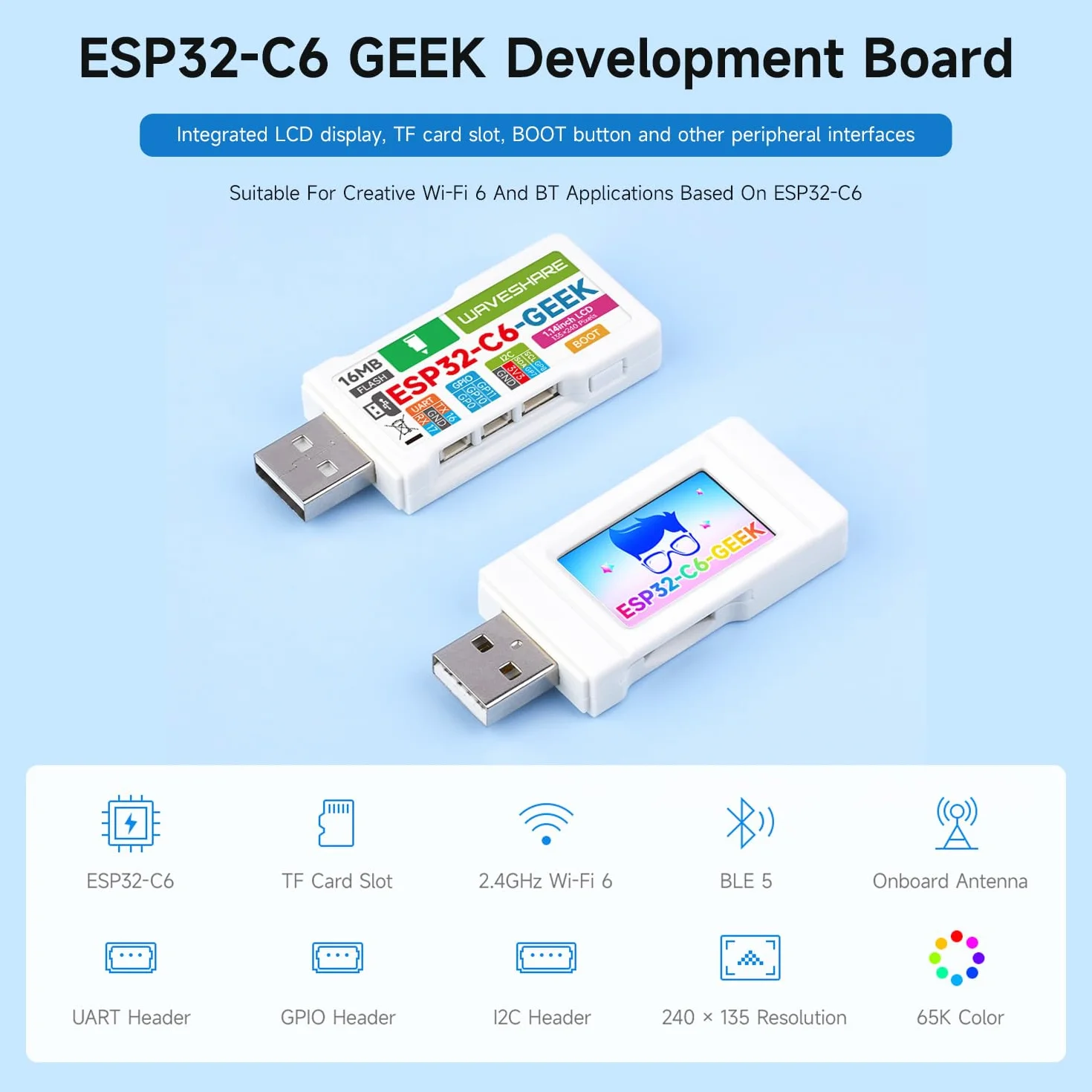

- ESP32-C6-GEEK, a geek development board, onboard USB-A male port, 1.14inch LCD display, TF card slot, and other peripherals. Supports 2.4GHz Wi-Fi 6 and BLE 5, with integrated 16MB Flash, provides I2C header, UART header, and GPIO header, bringing more possibilities for your project

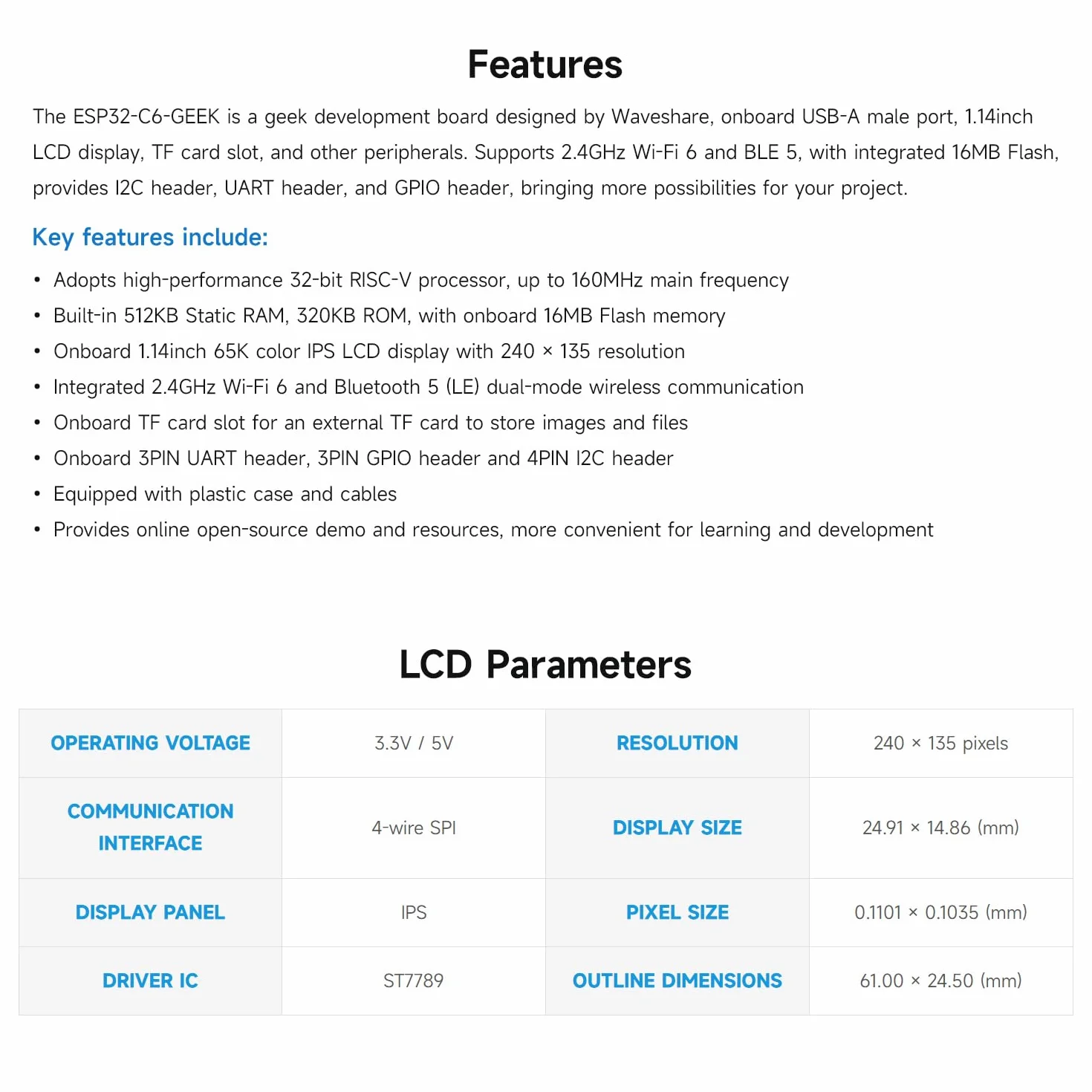

- Adopts high-performance 32-bit RISC-V processor, up to 160MHz main frequency. Built-in 512KB Static RAM, 320KB ROM, with onboard 16MB Flash memory

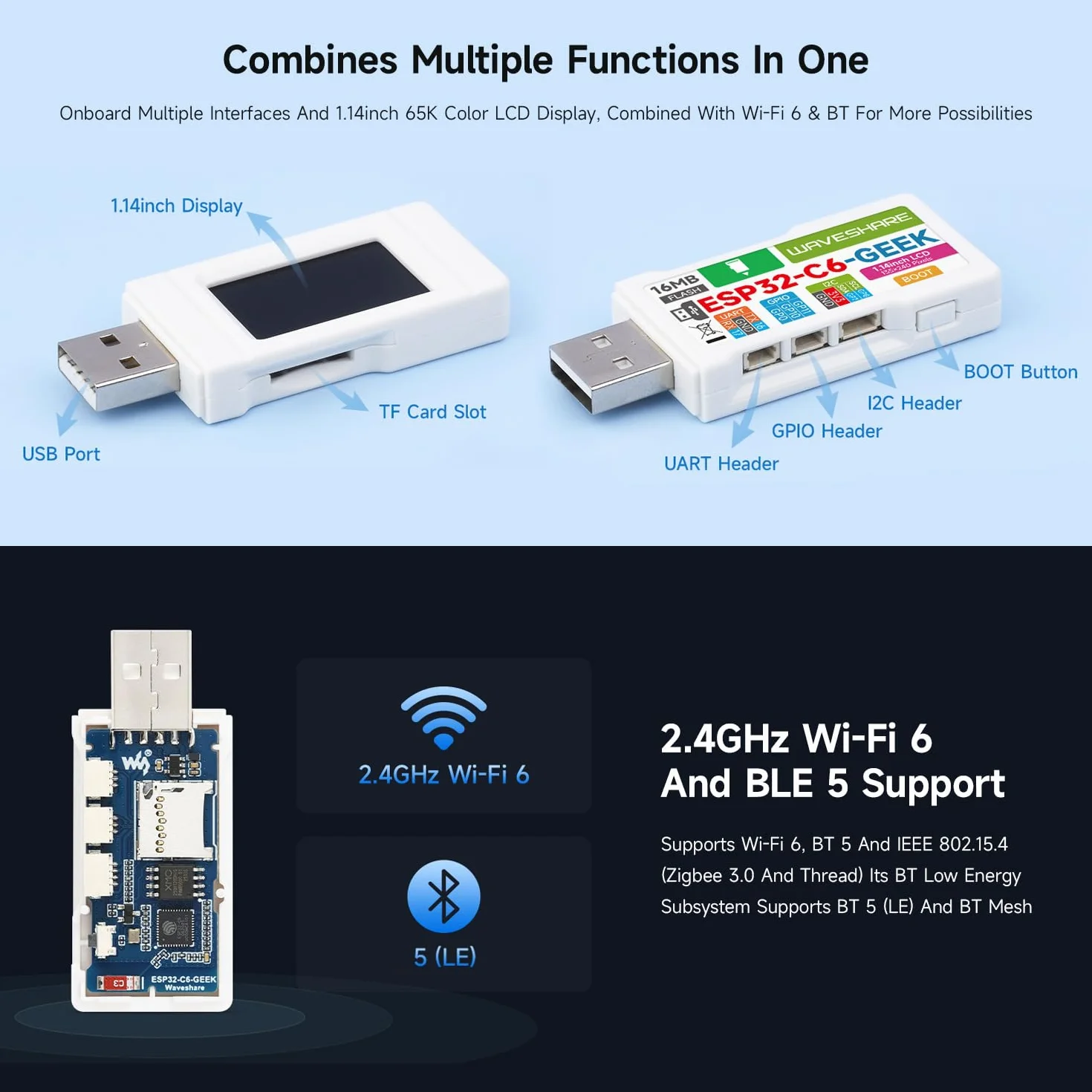

- Onboard 1.14inch 65K color IPS LCD display with 240 x 135 resolution. Integrated 2.4GHz Wi-Fi 6 and BT 5 (LE) dual-mode wireless communication
- Onboard TF card slot for an external TF card to save images and files. Onboard 3PIN UART header, 3PIN GPIO header and 4PIN I2C header

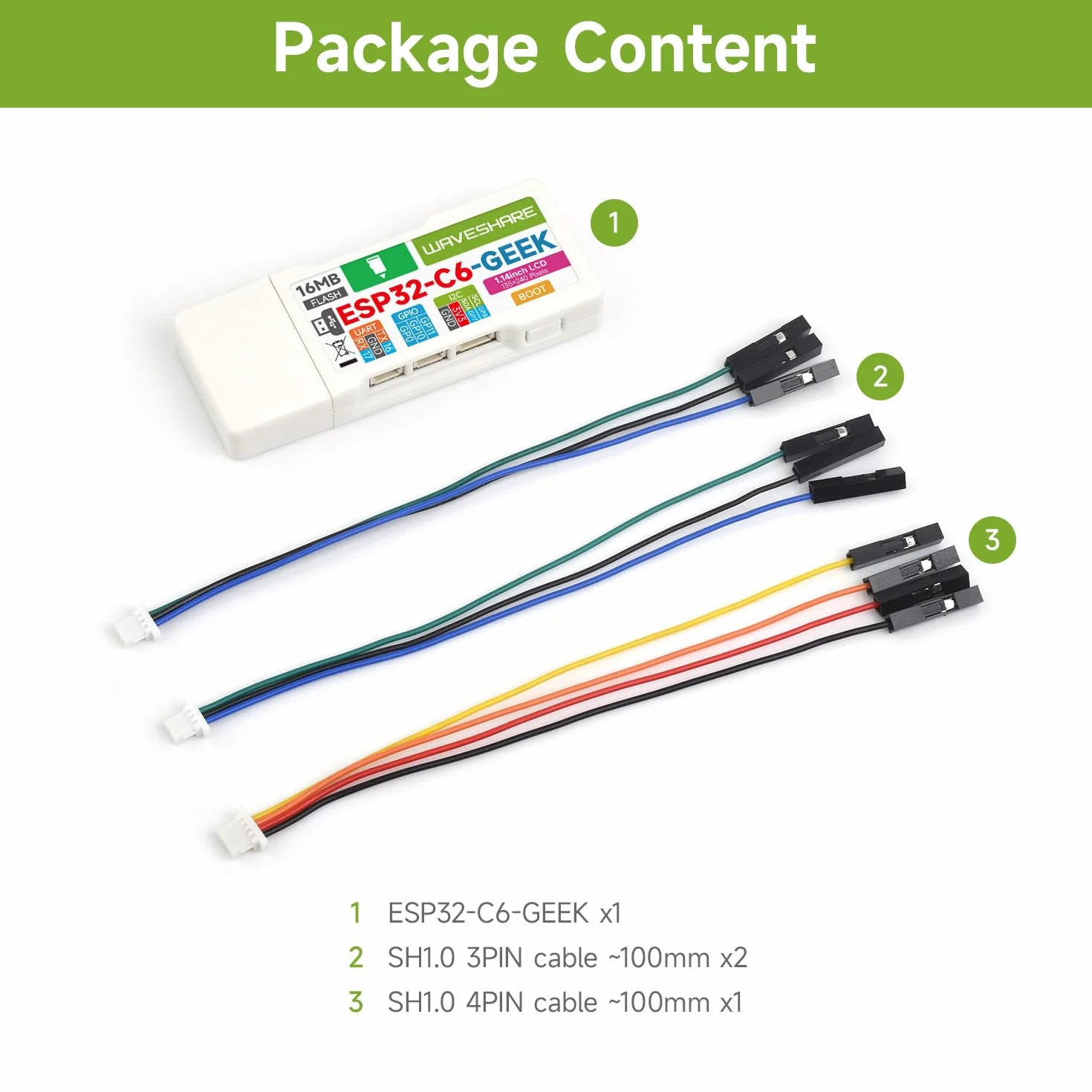

- Equipped with plastic case and cables. Provides online open-source demo and resources, more convenient for learning and development
