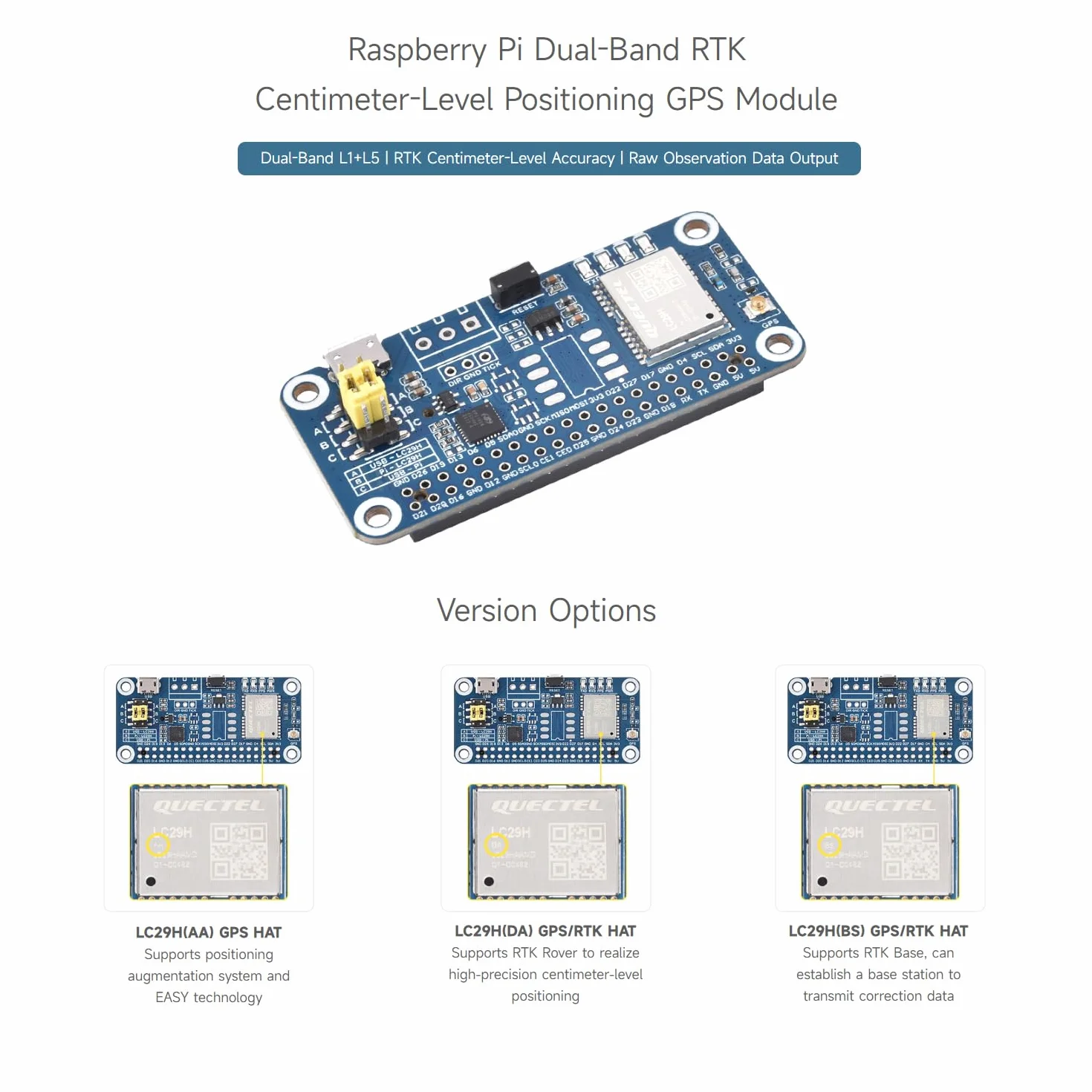

Waveshare LC29H Series Dual-Band GPS Module for Raspberry Pi, Dual-Band L1+L5 Positioning Technology, Supports Positioning Augmentation System and Easy Technology

Marka: Waveshare
Nazwa modelu: LC29H(AA) GPS HAT
Technologia łączności: Bluetooth, Ethernet, GPIO, USB
Dołączone komponenty: płyty z serii Raspberry Pi, Jetson Nano
System operacyjny: Linux
Standard komunikacji bezprzewodowej: Bluetooth
Zgodne urządzenia: Seria Raspberry Pi, Jetson Nano
Technologia pamięci RAM: LPDDR4
Zgodność z inteligentnym domem: Brak zgodności z inteligentnym domem
Liczba jednostek: 1 Count

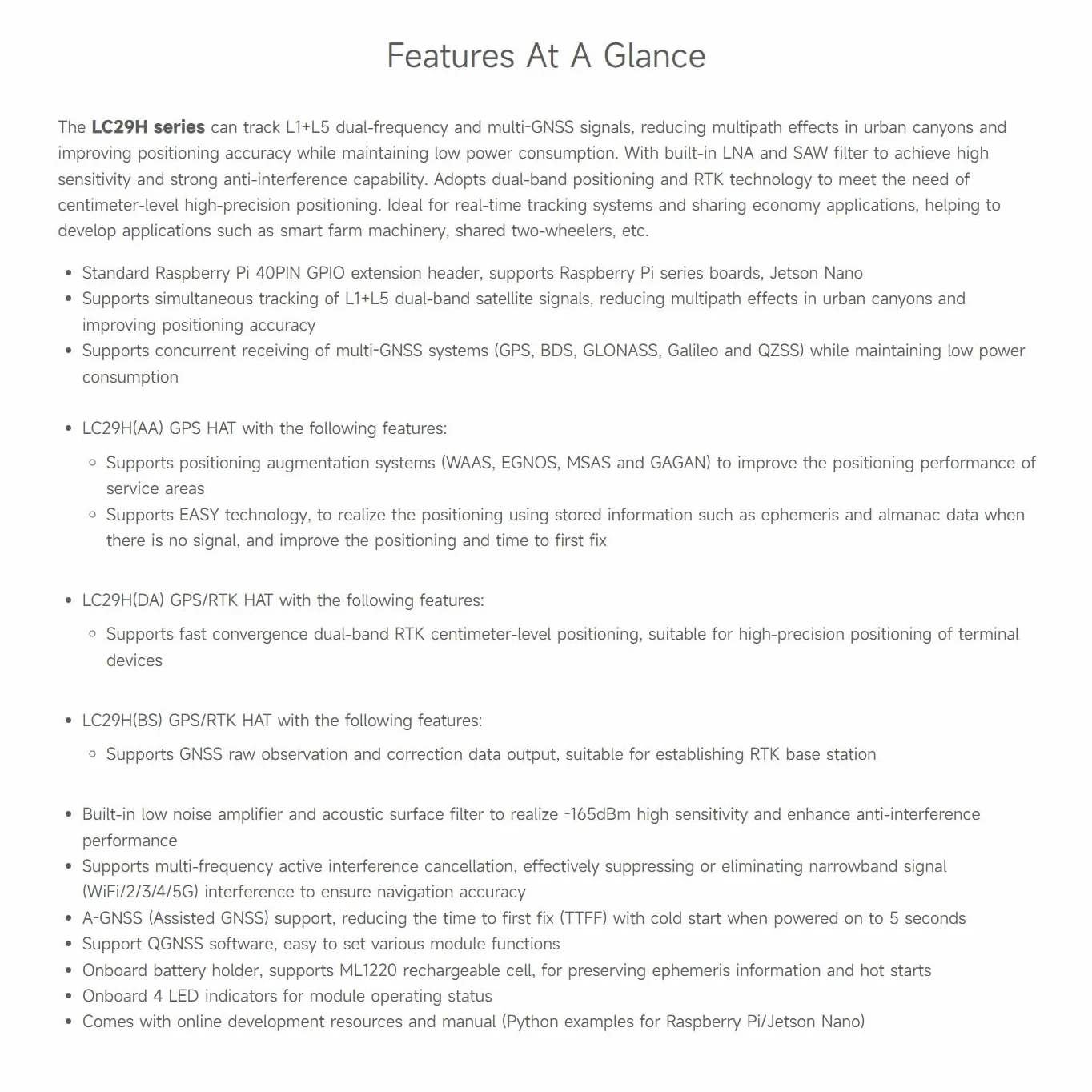

- Supports positioning augmentation systems (WAAS, EGNOS, MSAS and GAGAN) to improve the positioning performance of service areas
- Supports EASY technology, to realize the positioning using saved information such as ephemeris and almanac data when there is no signal, and improve the positioning and time to first fix

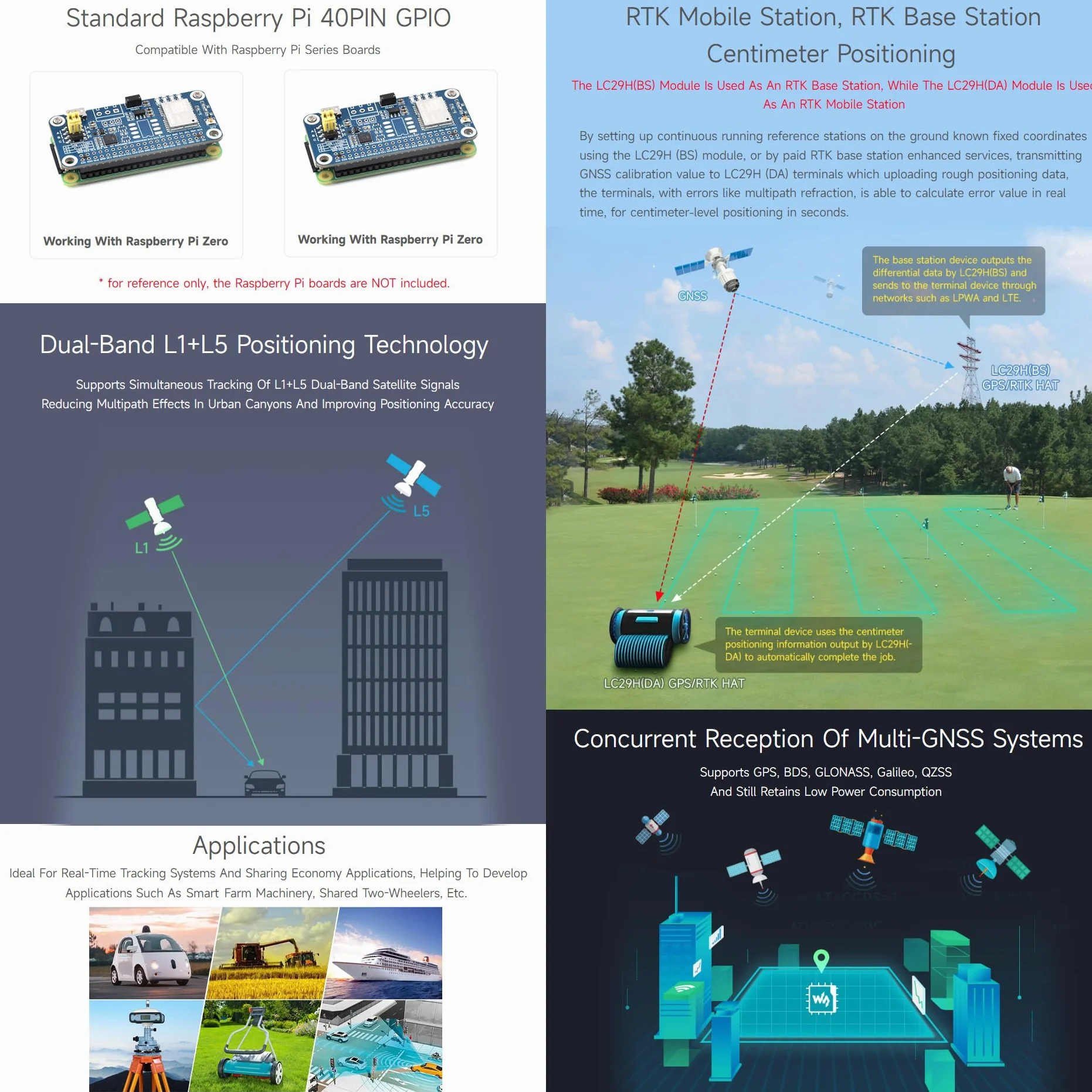

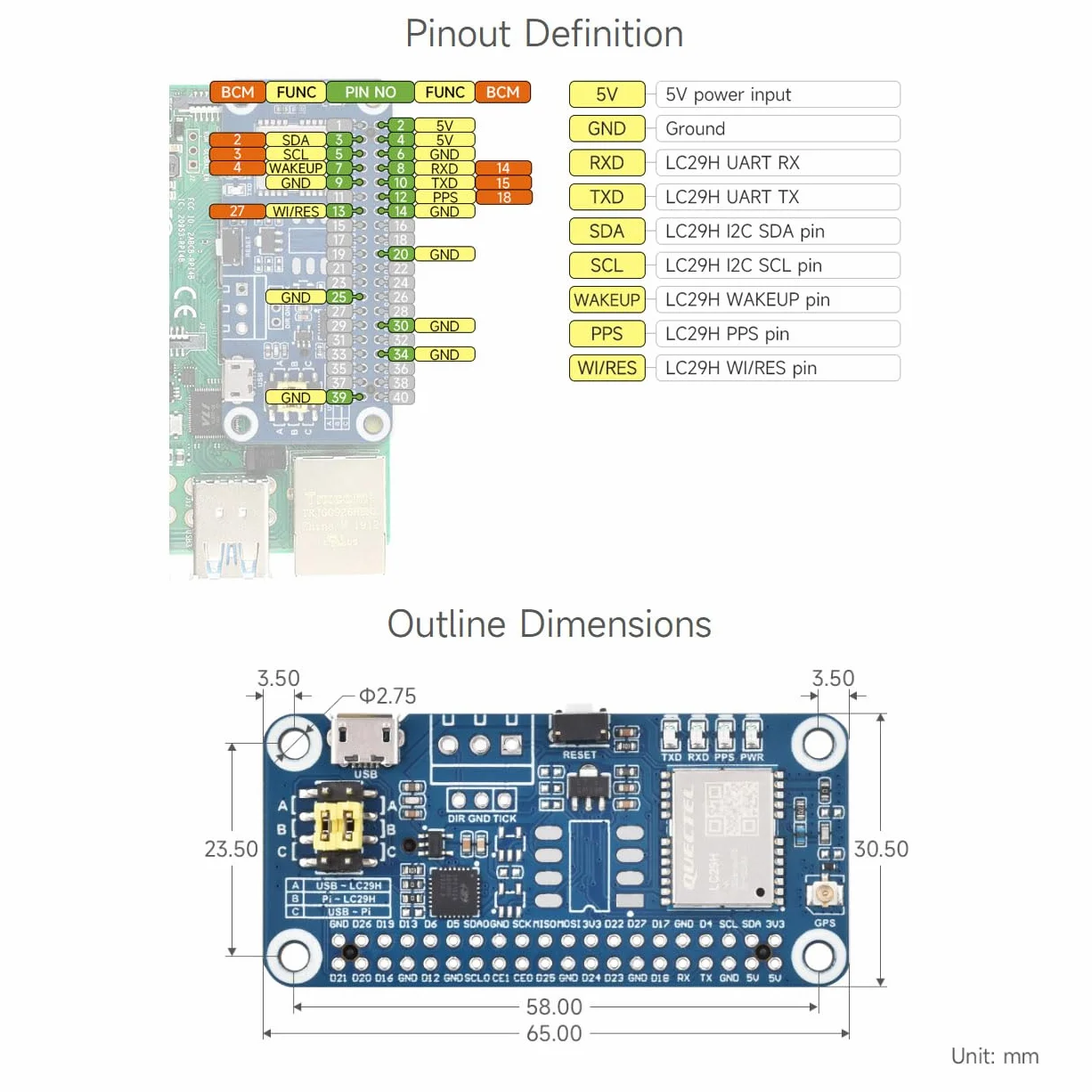

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports simultaneous tracking of L1+L5 dual-band satellite signals, reducing multipath effects in urban canyons and improving positioning accuracy
- Supports concurrent receiving of multi-GNSS systems (GPS, BDS, GLONASS, Galileo and QZSS) while maintaining low power consumption

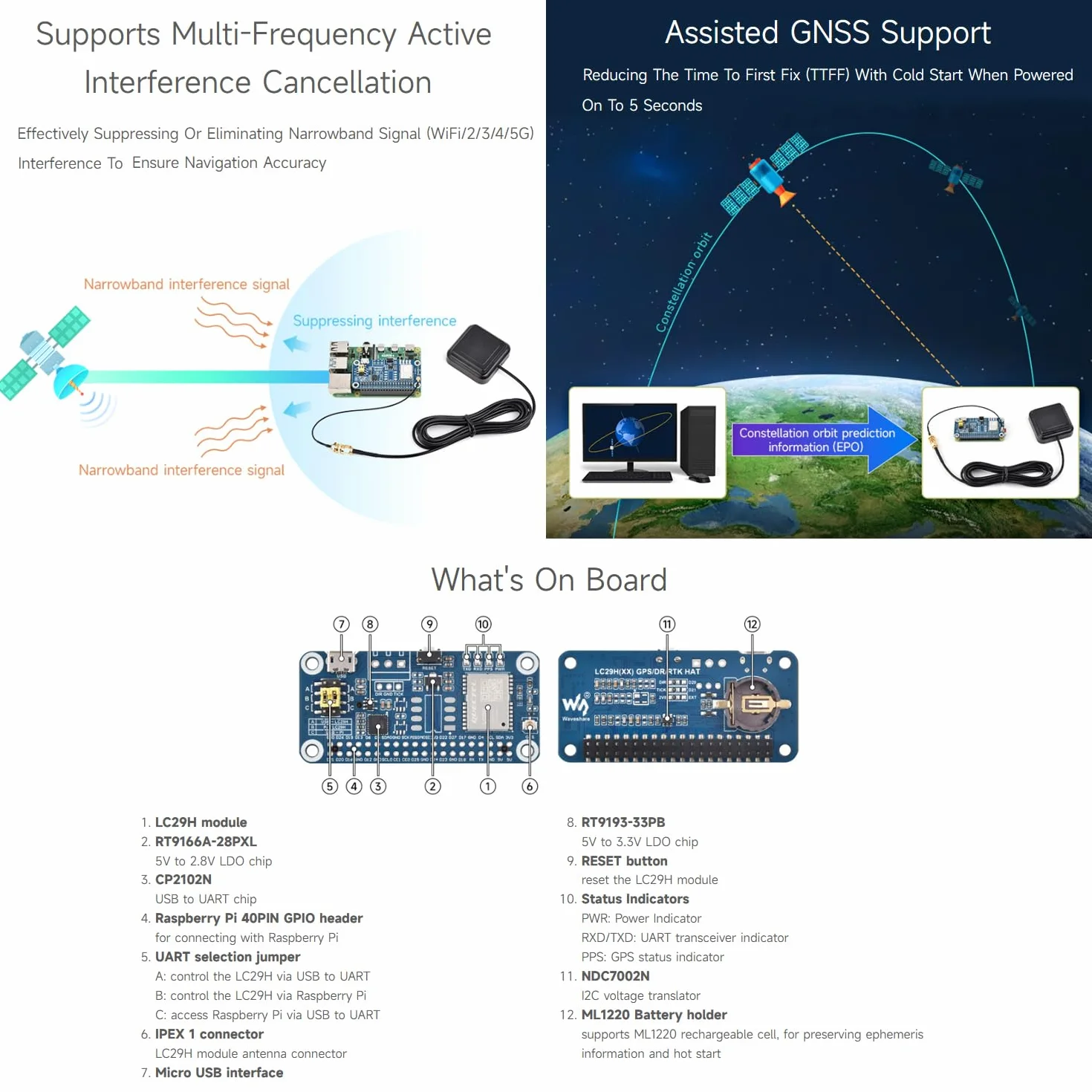

- Supports multi-frequency active interference cancellation, effectively suppressing or eliminating narrowband signal (WiFi/2/3/4/5G) interference to ensure navigation accuracy A-GNSS (Assisted GNSS) support, reducing the time to first fix (TTFF) with cold start when powered on to 5 seconds Support QGNSS software, easy to set various module functions
